Product

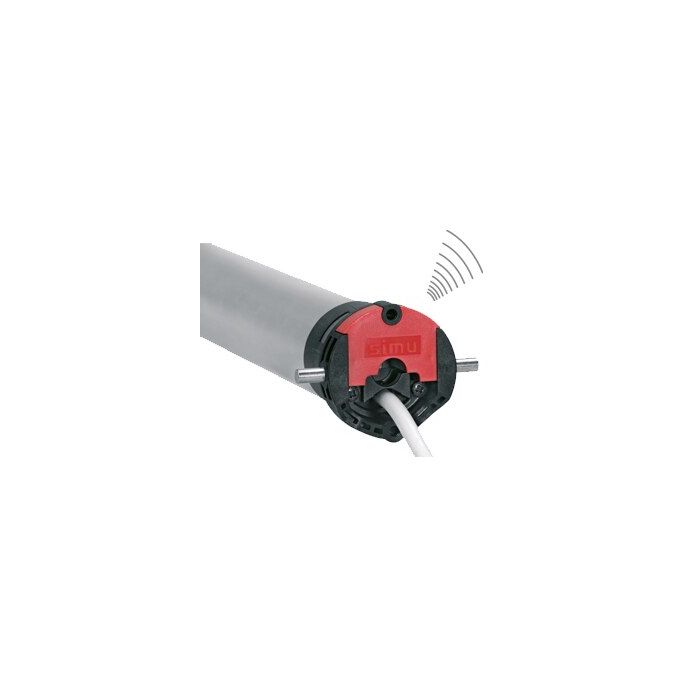

T5EHZ 08/17 230/50 C2,5M WHITE /1

Reference : 2005366

Torque 08 Nm - Speed 17 rpm
Power cable: 2.5 meters (3x0.75 mm. wires, white H05 VVF), plugglable.
Delivered by 1

Radio electronic, Ø50 mm.
- Motor with built-in SIMU Hz radio receiver.
- Electronic end-limit system.
- Stop on obstacle function.
- Frost detection function.
- Intermediate position function.

A wireless motor that combines intelligence with versatility!
- With its automatic setting mode, the T5 E Hz travel limits adjust themselves.
- 3 setting modes to choose from: automatic, semi-automatic and manual.
- Integrated stop against obstacle and ice detection systems for maximum safety.
- Option to set the user’s favorite position (slats open for instance) which can be changed as desired.
- Motor equipped with the SIMU Hz wireless control system recognized as one of the most reliable on the market.

See the range

Related documents

Features

Features Value
Radio Frequency 433.42 MHz
Protection Index IP 44
Speed 17 rpm
Torque 8 Nm
Diameter 50 mm
Power supply 230V/50HZ
Applications Rolling shutter
