Product

T3.5EBHz 04/16 230/50 C3M WH/10

Reference : 2009217

Torque 04 Nm - Speed 16 r.p.m.
Motor with cable 3 meters (2x0,75 mm2 wires , white H05 VV-F)
Delivered by 10

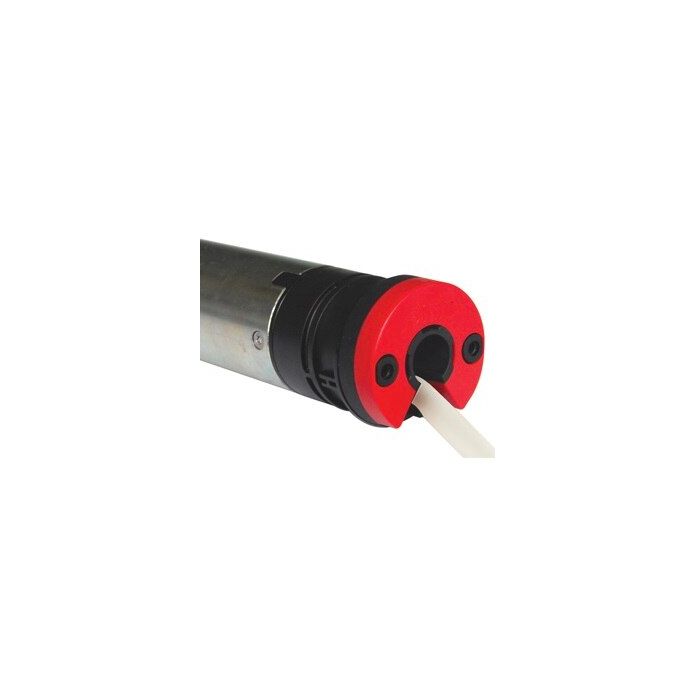

SIMU BHZ RADIO ELECTRONIC MOTOR DIAM 40

- MOTOR WITH BUILT-IN BIDIRECTIONAL RADIO SIMU-BHz: a real time follow-up of your installation directly on smartphone with Livein2. The motor gives its position on your smartphone.
- ELECTRONIC END-LIMIT SYSTEM: 4 possible setting modes: automatic mode, down semi-automatic mode, up semi-automatic mode, manual mode.
- STOP ON OBSTACLE FUNCTION: the motor stops during the closing in the case of an obstacle.
- FROST DETECTION FUNCTION: the motor stops during the opening if the shutter curtain is stuck in the guide rails by frost or if the bottom lath is locked.
- INTERMEDIATE POSITION FUNCTION: it is possibe to record a user’s favorite position.
- CLASSE II MOTOR: no earth connexion repuired.
- SIMPLE PROGRAMMING: SIMU-Hz/SIMU-BHz continuity: your installation and programming habits remain the same as those of SIMU-Hz technology.

See the range

Related documents

Features

Features Value
Radio Frequency 868 Tri Band MHz
Protection Index IP 44
Speed 16 rpm
Torque 4 Nm
Diameter 40 mm
Power supply 230V/50HZ
Applications Rolling shutter
