Torque 50 Nm - Speed 12 r.p.m.
Power cable: 2.5 meters (4x0,75 mm² wires, white H05 VV-F), plugglable.
Delivered by 10

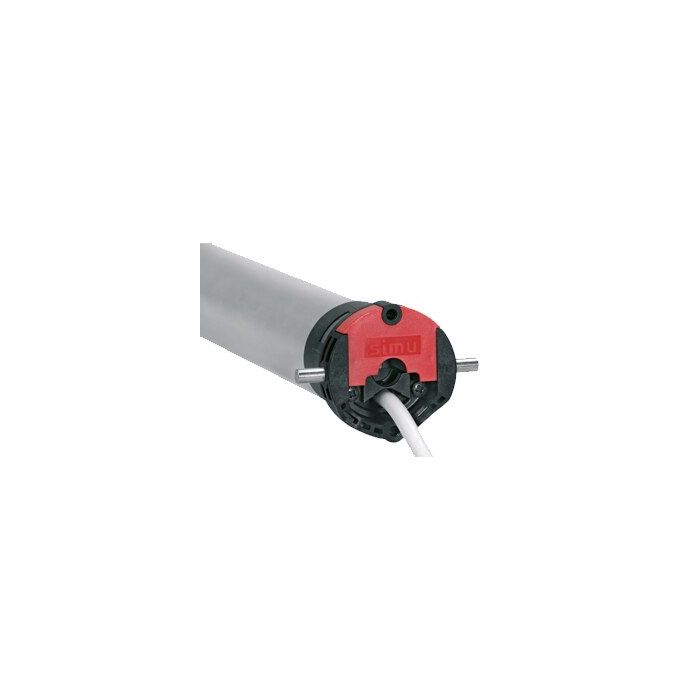

WIRED ELECTRONIC - Ø50 mm
- Electronic end-limit system: 4 possible setting modes of the end-limits.
- Stop on obstacle function: the motor stops when closing in the case of an obstruction.
- Frost detection function: the motor stops when opening if the shutter curtain is stuck in the guide rails by frost or if the bottom lath is locked.

A WIRED MOTOR THAT COMBINES INTELLIGENCE WITH VERSATILITY
- An automatic adjustment mode: when the roller shutter is equipped with automatic locks and stoppers on bottom lath, the T5 E automatically adjusts the up and down end-limits. When these equipments are nor used, the adjustment of the end-limits can be done with a specific setting switch.
- Stop on obstacle and frost detection: the T5 E automatically stops when the roller shutter over torques on an obstacle or if the shutter curtain is stuck in the guide rail by frost. In this way, it protects the users, their property and the roller shutter.
- Wide range of motors: a complete range of torque/speed (from 8 to 50 Nm) to motorize most roller shutters and to choose the most appropriate motor to fit each installation.
