T3.5EHZ 10/12 12V C0,25M/100

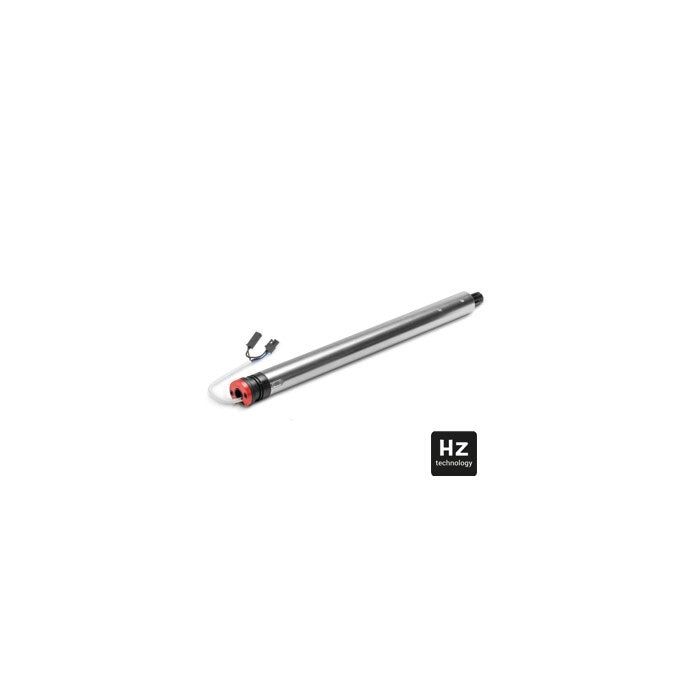

Motor with cable 0.2 meters, 3x0.75 mm2 wires, VVF white with two connectors - Delivered by 100
AUTOSUN 2 radio motor: T3,5 EHZ DC (12V)
• Adjustment of the end-limits: automatic, semi-automatic, manual.
• STOP ON OBSTACLE function: the motor will stop during the closing if it meets an obstacle.
• FROST DETECTION function: the motor will stop during the opening if the shutter curtain is stuck in the guide rails by frost or if the bottom lath is locked.
• INTERMEDIARY POSITION: which can be adjusted to the user’s need. Push “STOP” button of the transmitter to move the roller shutter to the favorite position.
• Soft start function: at DOWN end limit.
• Soft stop function: at UP & DOWN end limit.
• Compatible with all SIMU-Hz transmitters and automatic devices, including Hz sequential transmitter and Hz SUN sensor.
• Adjustment of the end limit with reduced speed in manual mode to ease the setting.
• Motor Sleeping and Waking up modes are directly done from the transmitter, no need to have access to the battery. The consumption is thus reduced to the minimum for storage or transportation of the roller shutter and the battery charge is then preserved. The motor will be woken up on site directly from the transmitter as well.
• Motor cable with 2 connectors 2 points and with mistakeproofing. Reduced size of the connectors to ease the integration inside the side frame.
Related documents
- • CAHIER TECHNIQUE AUTOSUN2_2022
- Installation guide T3,5 EHZ DC (12V)_2024
- PEP ecopassport – T3.5 E Hz - FR
- -- Fiche produit AUTOSUN HZ_2024
- • TECHNICAL BOOKLET AUTOSUN2_2022
- -- Product leaflet AUTOSUN HZ_2024
Features
Features | Value |
Radio Frequency | 433.42 MHz |
Protection Index | IP 44 |
Speed | 12 rpm |
Torque | 10 Nm |
Diameter | 40 mm |
Power supply | 12V |
Applications | Rolling shutter |
